产品参数

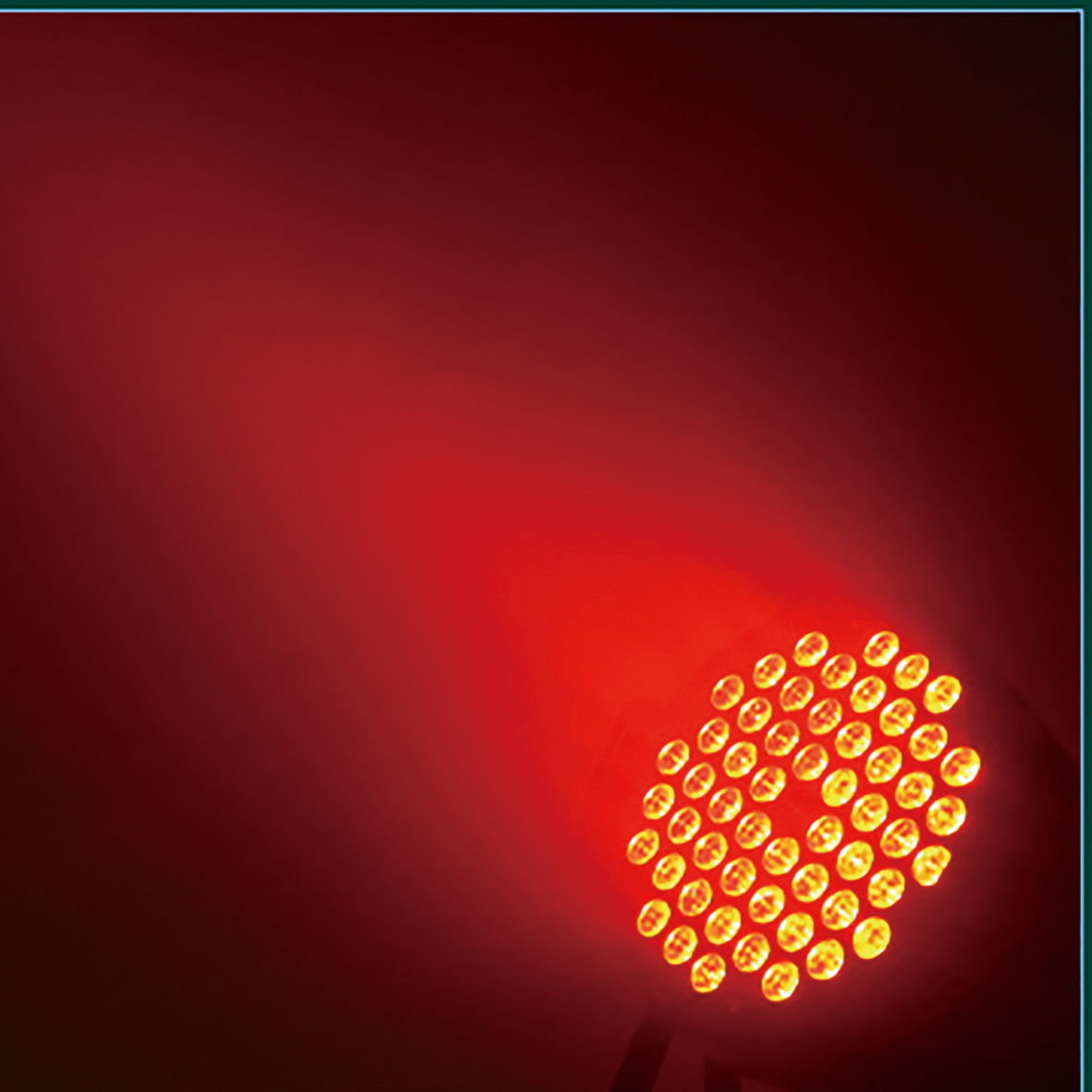

54颗LED面光帕灯
XL-5403M
额定电压：AC110V～240V,50～60Hz
功率:180W
光源：54×3W LED W28,Y26/（可做单色双色）平均寿命：50000H
色温校正：3200K～7200K线性调节
透镜角度：25°(15°、45°可选)
发光角度：可手动调节角度
频闪：独立电子频闪1-25Hz，可随机频闪，脉冲频闪，同步异步频闪，单色、混色温频闪
混色：W28,Y26线性混色，0-100%饱和度可调
电子调光：0-100%独立电子线性调光，摄像视频真实无闪烁，主从自走自动同步功能，控台正常控制自走永久同步
数码管显示菜单：调用各种场景，内置程序可以直接调用执行
控制模式：多种声控、DMX512、内置程序自走、主从
通道：2、4通道(二种通道模式可选)
灯具连接：三芯信号线IN/OUT 电源线IN/OUT
特点：铸铝外壳，光效高，混光均匀，性能稳定，配一进一出手拉手1.2米长电源、信号线，1024级超高灰度调光更加柔和
防护等级：电气Ⅱ级，防火V-1，防护IP20
声控灵敏度：65-130dB
工作环境：-20℃~40℃
采用超高透光率透镜,配上高亮度灯珠,设控台调节线性亮度功能,产生精密、明亮、锐利的光束
设有数码显示幕控制DMX编码及灯体功能选择,内置抗干扰电路及灯体超温保护 ，其结构完善紧密,高速频闪可于1-10次/秒不间断连续频闪，外表采用铝合金制定而成,配合现代感的流线型外型设计,使其外观整齐亮丽 RGBW混合无数个颜色,演绎全新的现代缤纷的色彩
Rated voltage: AC110V~240V, 50~60Hz
Power: 180W
Light source: 54 × 3W LED W28, Y26/(can be used for single color and dual color) Average lifespan: 50000H
Color temperature correction: 3200K~7200 K linear adjustment
Lens angle: 25 ° (15 °, 45 ° optional)
Luminous angle: can be manually adjusted
Strobe: Independent electronic strobe 1-25Hz, random strobe, pulse strobe, synchronous step strobe, monochrome, mixed color temperature strobe
Color mixing: W28, Y26 linear color mixing, 0-100% saturation adjustable
Electronic dimming: 0-100% independent electronic linear dimming, real and flickerless camera video, automatic synchronization function between master and slave, normal control of the control console, permanent synchronization of self walking
Nixie tube display menu: call various scenes, and the built-in program can be directly called for execution
Control modes: multiple voice controls, DMX512, built-in program self-propelled, master-slave
Channel: 2, 4 channels (two channel modes are optional)
Lamp connection: three core signal wire IN/OUT power wire IN/OUT
Features: Cast aluminum shell, high light efficiency, uniform light mixing, stable performance, equipped with one in one out handle, 1.2-meter long power and signal cable, 1024 level ultra-high grayscale dimming for softer performance
Protection level: Electrical level II, fire resistance V-1, protection Ip20
Voice control sensitivity: 65-130dB
Working environment: -20 ℃~40 ℃
Adopting ultra-high transmittance lenses, equipped with high brightness light beads, and equipped with a control console to adjust linear brightness function, producing precise, bright, and sharp beams of light
It is equipped with digital display screen control DMX code and lamp body function selection, built-in anti-interference circuit and lamp body overtemperature protection. Its structure is perfect and compact. High speed strobe can be continuously strobe 1-10 times/second. Its appearance is made of aluminum alloy. With the modern streamline design, its appearance is neat and bright. RGBW mixes countless colors to deduce new modern and colorful colors
