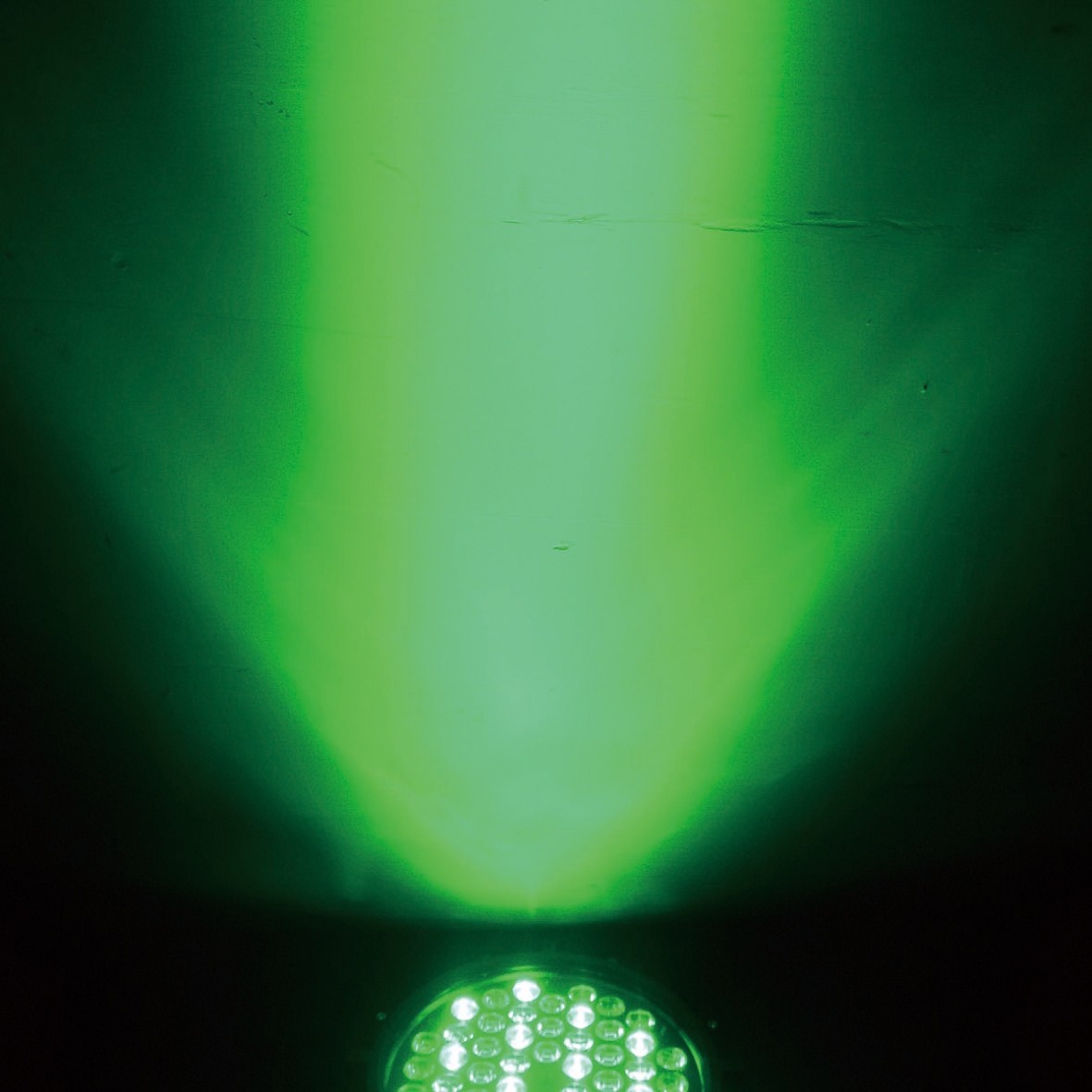

型号：3W 72颗帕灯

所属系列：染色灯系列

扫描二维码咨询

电话：13078886936/刘经理

产品参数

3W 72颗帕灯
3W 72 pcs Pa Lights
H-7203R
额定电压：AC110V～240V,50～60Hz
功率：220W
光源：72×3W (R14,G20,B20,W18)(可定做单色双色）平均寿命：50000H
色温校正：3200K～7200K线性调节
透镜角度：25°(15°、45°可选)
发光角度：可调节角度
频闪：独立电子频闪1-25Hz，可随机频闪，脉冲频闪，同步异步频闪，单色、混色温频闪
混色：RGBW(红绿蓝白)线性混色，1670万种颜色（0-100%饱和度可调），内置宏功能
电子调光：0-100%独立电子线性调光，摄像视频真实无闪烁，主从自走自动同步功能，控台正常控制自走永久同步
数码管显示菜单：调用各种场景，内置程序可以直接调用执行
控制模式：多种声控、DMX512、内置程序自走、主从联机模式
通道：7通道(二种通道模式可选)
灯具连接：三芯信号线IN/OUT 电源线IN/OUT
特点：铸铝外壳，光效高，混光均匀，性能稳定，配一进一出手拉手1.2米长电源、信号线，1024级超高灰度调光更加柔和，
防护等级：电气Ⅱ级，防火V-1，防护IP20
声控灵敏度：65-130dB
工作环境：-20℃~40℃
产品尺寸：240×220×310mm
包装尺寸：250×250×360mm
特点:无闪光，无杂斑，恒流驱动和光源，适合录像拍摄
适合环境:婚庆/演艺吧/酒吧/舞台演出场所/流动演出等
Rated voltage: AC110V~240V, 50~60Hz
Power: 220W
Light source: 72 × 3W (R14, G20, B20, W18) (customizable single color and dual color) average lifespan: 50000H
Color temperature correction: 3200K~7200 K linear adjustment
Lens angle: 25 ° (15 °, 45 ° optional)
Luminous angle: adjustable angle
Strobe: Independent electronic strobe 1-25Hz, random strobe, pulse strobe, synchronous step strobe, monochrome, mixed color temperature strobe
Color mixing: RGBW (red green blue white) linear color mixing, 16.7 million colors (0-100% saturation adjustable), built-in macro function
Electronic dimming: 0-100% independent electronic linear dimming, real and flickerless camera video, automatic synchronization function between master and slave, normal control of the control console, permanent synchronization of self walking
Nixie tube display menu: call various scenes, and the built-in program can be directly called for execution
Control modes: multiple voice control, DMX512, built-in program self running, master-slave online mode
Channel: 7 channels (two channel modes are optional)
Lamp connection: three core signal wire IN/OUT power wire IN/OUT
Features: Cast aluminum casing, high light efficiency, uniform light mixing, stable performance, equipped with a 1.2-meter long power and signal cable with a one in one out handle, and a 1024 level ultra-high grayscale dimming that is more gentle,
Protection level: Electrical level II, fire resistance V-1, protection Ip20
Voice control sensitivity: 65-130dB
Working environment: -20 ℃~40 ℃
Product size: 240×220×310mm
Packaging size: 250×250×360mm
Features: No flash, no speckles, constant current drive and light source, suitable for video shooting
Suitable environment: wedding/performance bar/bar/stage performance venue/mobile performance, etc
