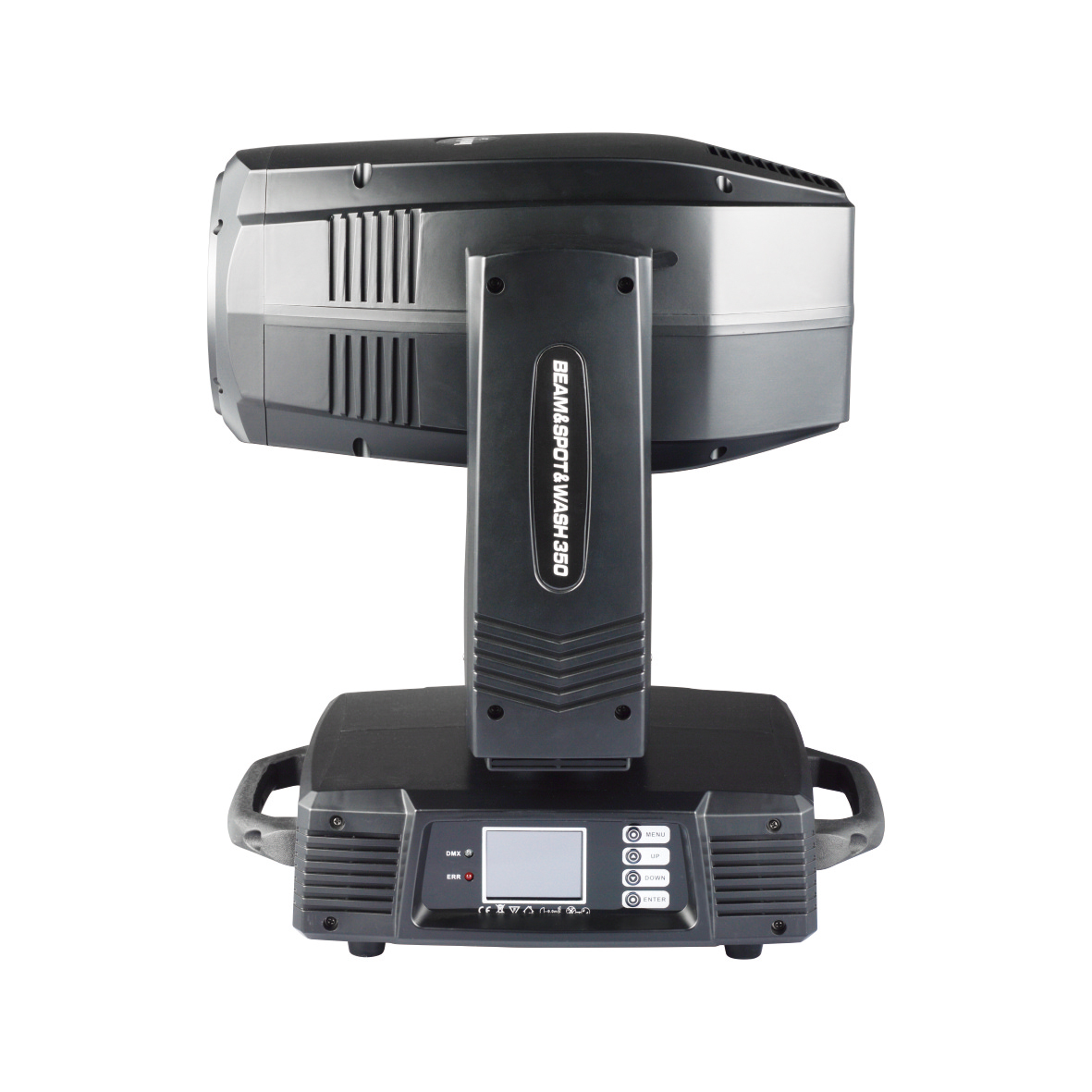

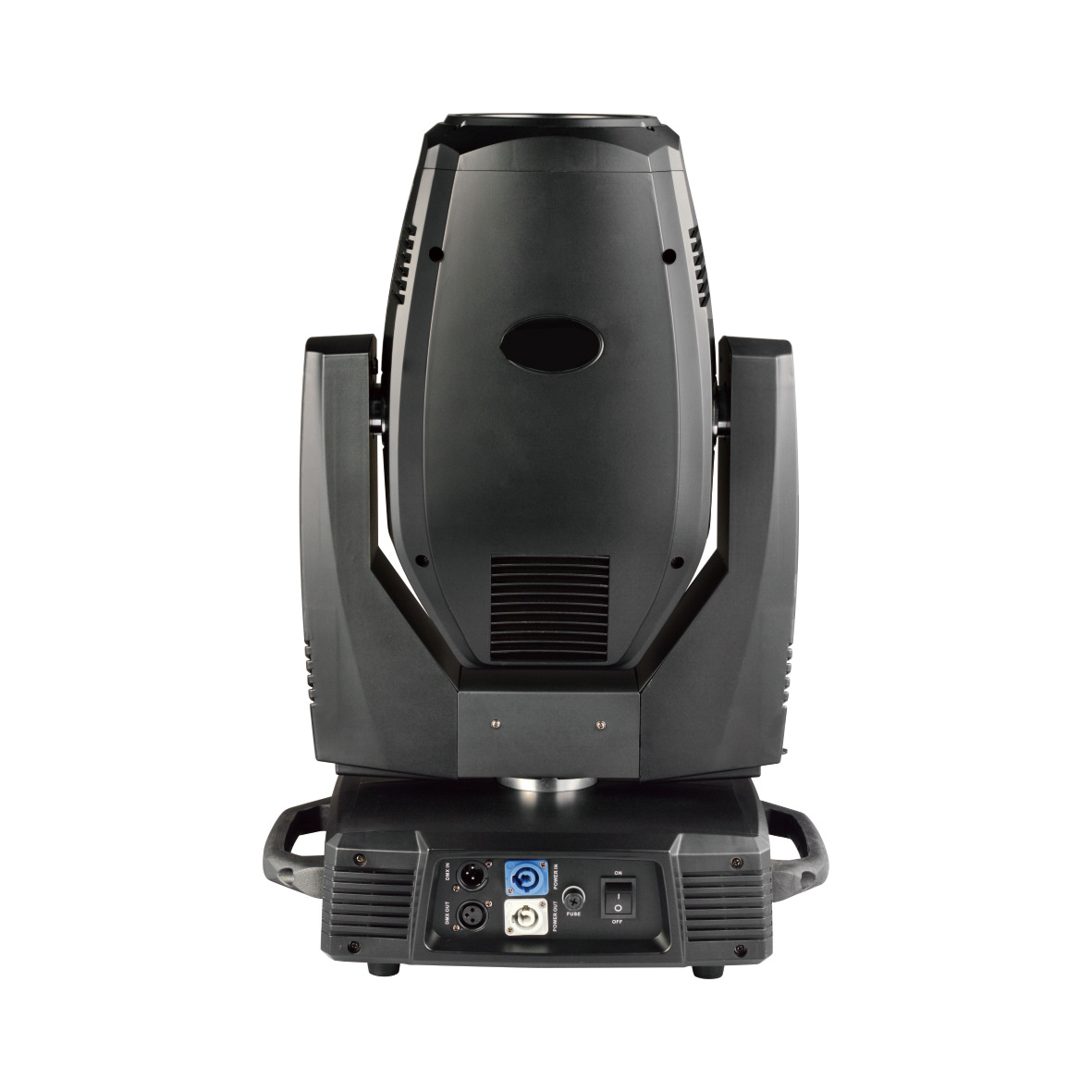

型号:350W图案光束灯
所属系列: 摇头灯系列
扫描二维码咨询
电话:13078886936/刘经理
产品参数


350W图案光束灯
XL-350S
额定电压:AC110V-240V,50/60HZ
光源规格:350W PHILIPS
色温:9000K
光学:高精度玻璃光学透镜(6层镀膜),多级光学镜头组电子调焦,线性放大功能
特点:图案,染色,光束三合一.
色盘:13个颜色片+1个白光,双向彩虹效果,速度可调,任意定位功能
固定图案盘:13个固定图案片+1个白光,带图案抖动,单向流水,速度可调,任意定位功能。
旋转图案盘:9个可旋转图案片+1个白光,每个图案具有正反旋转,抖动及流水效果。
棱镜:一个排镜+一个十六面旋转凌镜,棱镜正反向旋转,速度可调。(可双向独立旋转/棱镜定位功能,棱镜可定制)
频闪:双片式频闪0.5-14次/S,具有同步、异步、随机频闪方式,速度可调。
雾化: 1个独立的雾化效果,光斑柔和自然。
扫描范围: X轴540°/2.5 S,Y轴270°/1.5 S,解析度:8Bit/16Bit。
显示界面:采用宽屏2.8寸LCD液晶中英文显示界面。
智能控制:水平垂直采用光电复位,当发生误动后可自动检索复位;三相步进电机使运动更快更平滑内置过热保护和智能散热系统,远程控制灯泡开关及功率。
光束角度:Zoom /2.8-48°   Spot/5- 20°     Wash/  15-65°
通道:20/24CH或者自定义通道模式。
电动对焦:光束角度2.5°-60°,双片式调光,线性调光0-100%
水平/垂直:水平角度540°,垂直角度270°
散热系统:内置对流风扇,带过热保护功能。
防护等级:IP20,可选防雨罩防护等级可高达IP44
整流器:电子整流器使产品重量更轻,亮度更强,灯泡更稳定,更环保,节能.
净重:20KG
Rated voltage: AC110V-240V, 50/60HZ
Light source specification: 350W PHILIPS
Color temperature: 9000K
Optics: high-precision glass optical lens (6-layer coating), multi-level optical lens group electronic focusing, linear amplification function
Features: Pattern, dyeing, and beam in one
Color disc: 13 color chips+1 white light, bidirectional rainbow effect, adjustable speed, and any positioning function.
Fixed pattern disc: 13 fixed pattern pieces+1 white light, with pattern jitter, unidirectional flow, adjustable speed, and any positioning function.
Rotating pattern disc: 9 rotatable pattern pieces+1 white light, each pattern has positive and negative rotation, shaking, and flowing effects.
Prism: A row of mirrors and a sixteen sided rotating prism, with the prism rotating in both directions and adjustable speed. (Capable of bidirectional independent rotation/prism positioning function, and the prism can be customized)
Strobe: Dual chip strobe 0.5-14 times/S, with synchronous, asynchronous, and random strobe modes, and adjustable speed.
Atomization: 1 independent atomization effect, with soft and natural light spots.
Scanning range: X-axis 540 °/2.5 S, Y-axis 270 °/1.5 S, resolution: 8Bit/16Bit.
Display interface: It adopts a widescreen 2.8 inch LCD display interface in both Chinese and English.
Intelligent control: Horizontal and vertical use of photoelectric reset, which can automatically retrieve and reset in case of misoperation; Three phase stepper motor for faster and smoother movement, with built-in overheating protection and intelligent cooling system, remote control of light bulb switch and power.
Beam angle: Zoom/2.8-48 ° Spot/5-20 ° Wash/15-65 °
Channel: 20/24CH or custom channel mode.
Electric focusing: beam angle 2.5 ° -60 °, dual disc dimming, linear dimming 0-100%
Horizontal/Vertical: Horizontal angle 540 °, vertical angle 270 °
Heat dissipation system: built-in convection fan with overheating protection function.
Protection level: IP20, optional rain cover protection level can reach up to Ip44
Rectifier: Electronic rectifiers make the product lighter, brighter, more stable, more environmentally friendly, and energy-efficient
Net weight: 20KG
