型号：380W三合一光束灯

所属系列：摇头灯系列

扫描二维码咨询

电话：13078886936/刘经理

产品参数

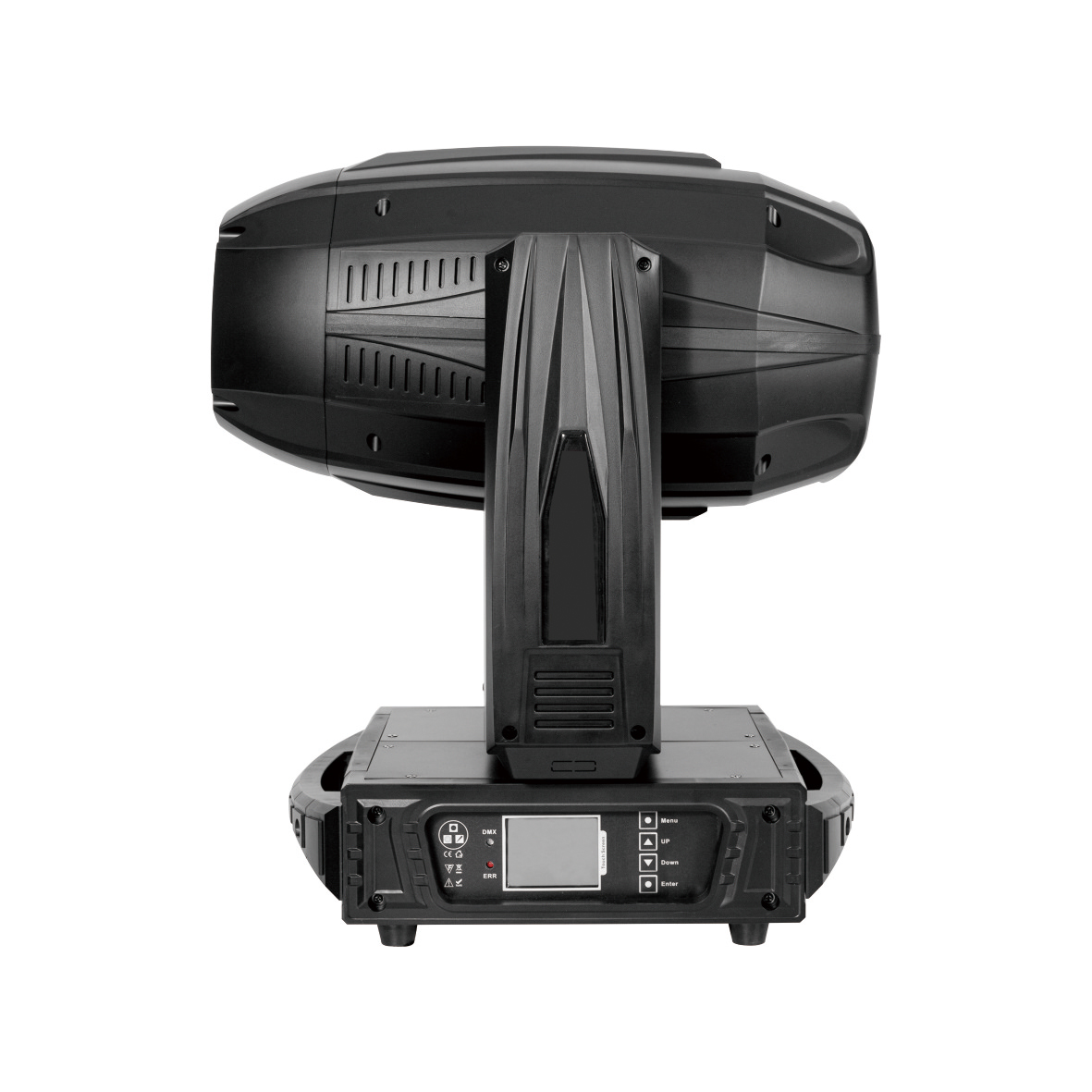

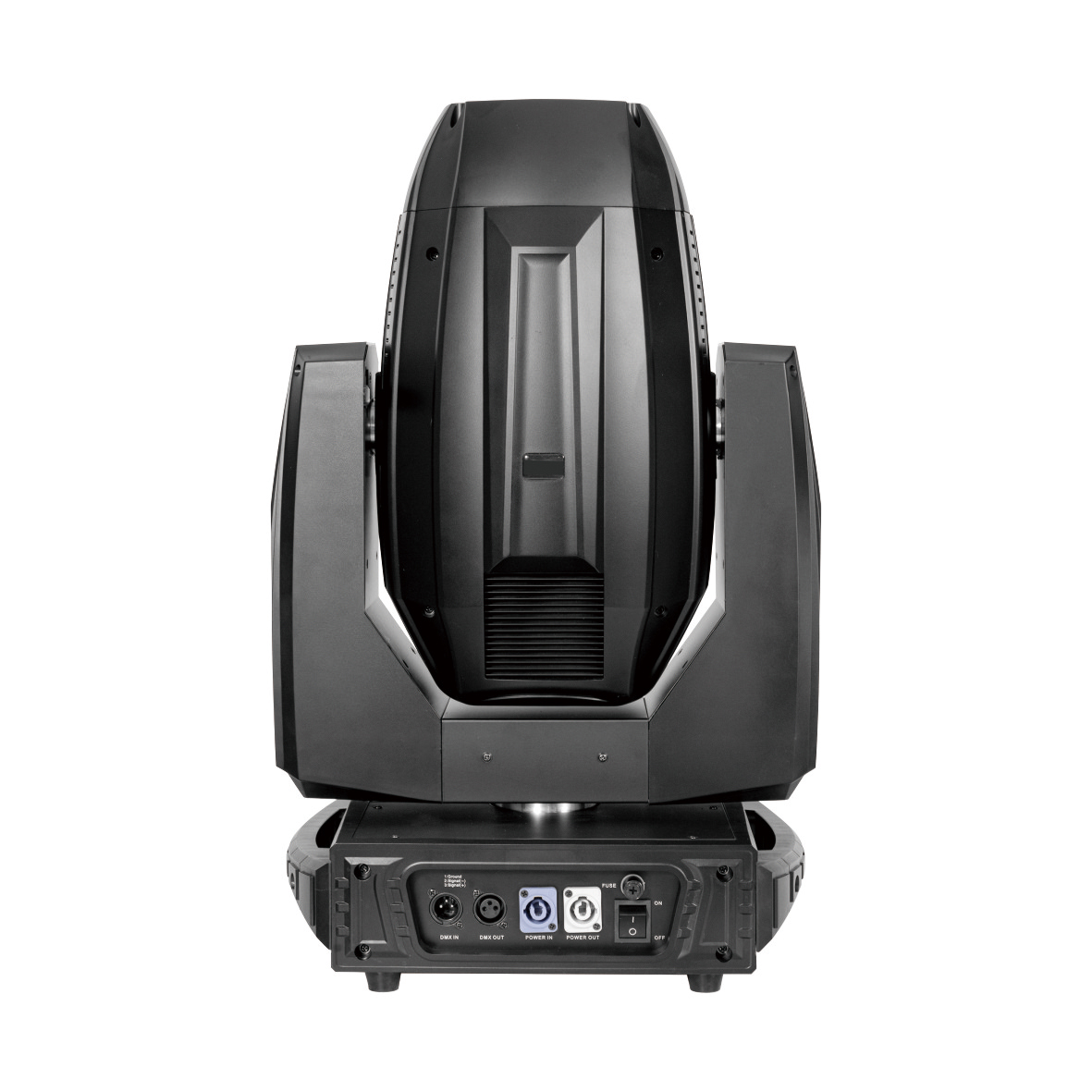

380W三合一光束灯
XL-380S
额定电压：AC110V-240V,50/60HZ
光源规格：380W PHILIPS
色温：9000K
光学：高精度玻璃光学透镜（6层镀膜），多级光学镜头组电子调焦，线性放大功能
特点：图案，染色，光束三合一.
色盘：11个颜色片+1个白光，双向彩虹效果，速度可调，任意定位功能
固定图案盘：12个固定图案片+1个白光，带图案抖动,单向流水，速度可调，任意定位功能。
效果图案盘：5个图案+白光，火焰效果,水纹效果。
旋转图案盘：7个可旋转图案片+1个白光，每个图案具有正反旋转，抖动及流水效果
棱镜：一个八面旋转棱镜+一个十六面旋转凌镜，棱镜正反向旋转，速度可调。（双棱镜可叠加形成40道锐利的光束，可双向独立旋转/棱镜定位功能，棱镜可定制）
频闪：双片式频闪0.5-14次/S，具有同步、异步、随机频闪方式，速度可调。
雾化： 1个独立的雾化效果，光斑柔和自然。
扫描范围： X轴540°/2.5 S，Y轴270°/1.5 S，解析度：8Bit/16Bit。
显示界面：采用宽屏2.8寸LCD液晶中英文显示界面。
智能控制：水平垂直采用光电复位，当发生误动后可自动检索复位；三相步进电机使运动更快更平滑内置过热保护和智能散热系统，远程控制灯泡开关及功率。
光束角度：Zoom /2.8-48° Spot/5- 20° Wash/ 15-65°
通道：20/24CH或者自定义通道模式。
电动对焦：光束角度2.5°-60°，双片式调光，线性调光0-100%
水平/垂直：水平角度540°，垂直角度270°
散热系统：内置对流风扇，带过热保护功能。
防护等级：IP20，可选防雨罩防护等级可高达IP44
整流器：电子整流器使产品重量更轻，亮度更强，灯泡更稳定，更环保，节能.
净重：21KG
Rated voltage: AC110V-240V, 50/60HZ
Light source specification: 380W PHILIPS
Color temperature: 9000K
Optics: high-precision glass optical lens (6-layer coating), multi-level optical lens group electronic focusing, linear amplification function
Features: Pattern, dyeing, and beam in one
Color disc: 11 color chips+1 white light, bidirectional rainbow effect, adjustable speed, and any positioning function.
Fixed pattern disc: 12 fixed pattern pieces+1 white light, with pattern jitter, unidirectional flow, adjustable speed, and any positioning function.
Effect pattern plate: 5 patterns+white light, flame effect, and water texture effect.
Rotating pattern disc: 7 rotatable pattern pieces+1 white light, each pattern has positive and negative rotation, shaking, and flowing effects
Prism: an eight sided rotating prism+a sixteen sided rotating prism, with the prism rotating in both directions and adjustable speed. (Double prisms can be stacked to form 40 sharp beams, with bidirectional independent rotation/prism positioning function, and prisms can be customized)
Strobe: Dual chip strobe 0.5-14 times/S, with synchronous, asynchronous, and random strobe modes, and adjustable speed.
Atomization: 1 independent atomization effect, with soft and natural light spots.
Scanning range: X-axis 540 °/2.5 S, Y-axis 270 °/1.5 S, resolution: 8Bit/16Bit.
Display interface: It adopts a widescreen 2.8 inch LCD display interface in both Chinese and English.
Intelligent control: Horizontal and vertical use of photoelectric reset, which can automatically retrieve and reset in case of misoperation; Three phase stepper motor for faster and smoother movement, with built-in overheating protection and intelligent cooling system, remote control of light bulb switch and power.
Beam angle: Zoom/2.8-48 ° Spot/5-20 ° Wash/15-65 °
Channel: 20/24CH or custom channel mode.
Electric focusing: beam angle 2.5 ° -60 °, dual disc dimming, linear dimming 0-100%
Horizontal/Vertical: Horizontal angle 540 °, vertical angle 270 °
Heat dissipation system: built-in convection fan with overheating protection function.
Protection level: IP20, optional rain cover protection level can reach up to Ip44
Rectifier: Electronic rectifiers make the product lighter, brighter, more stable, more environmentally friendly, and energy-efficient
Net weight: 21KG
