产品参数

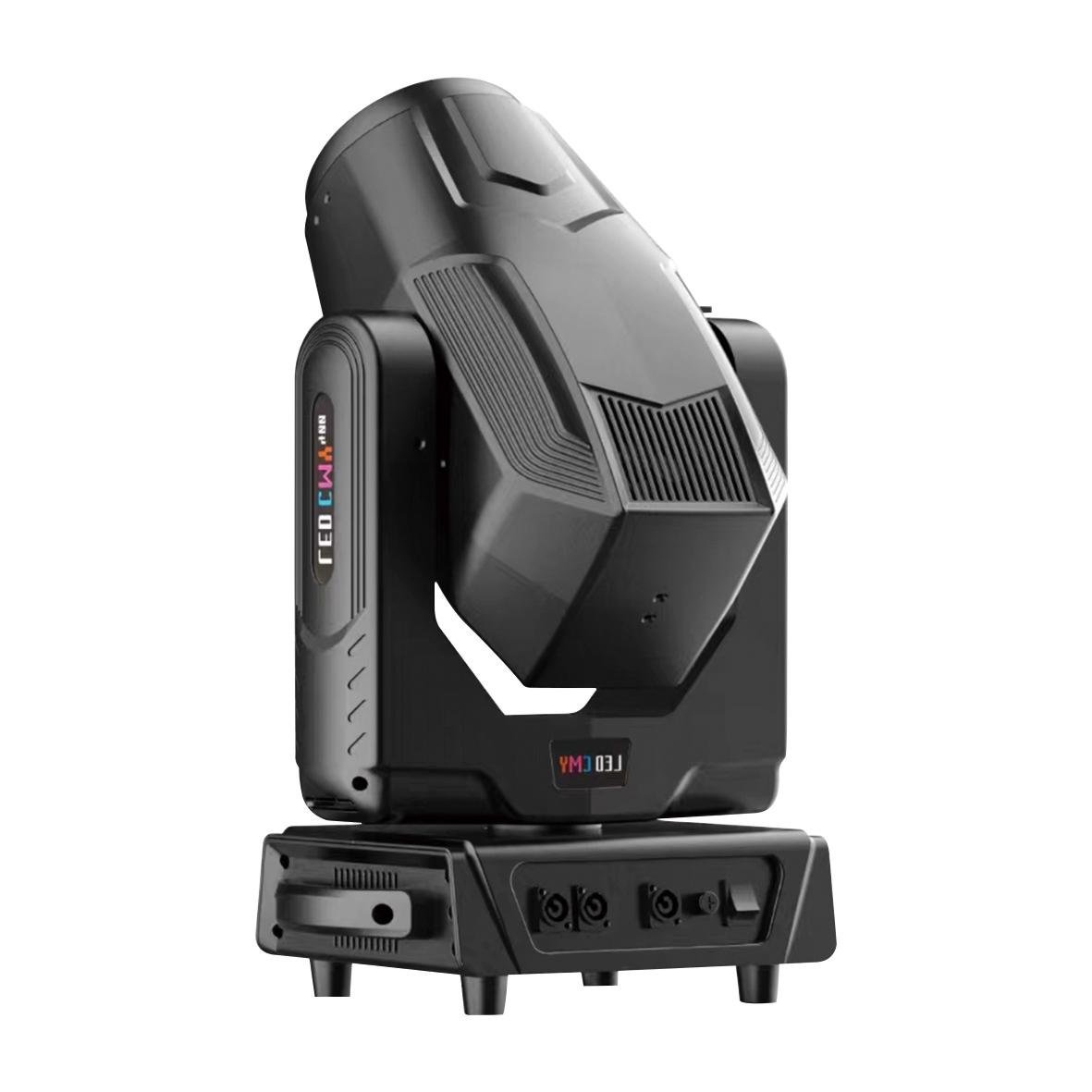

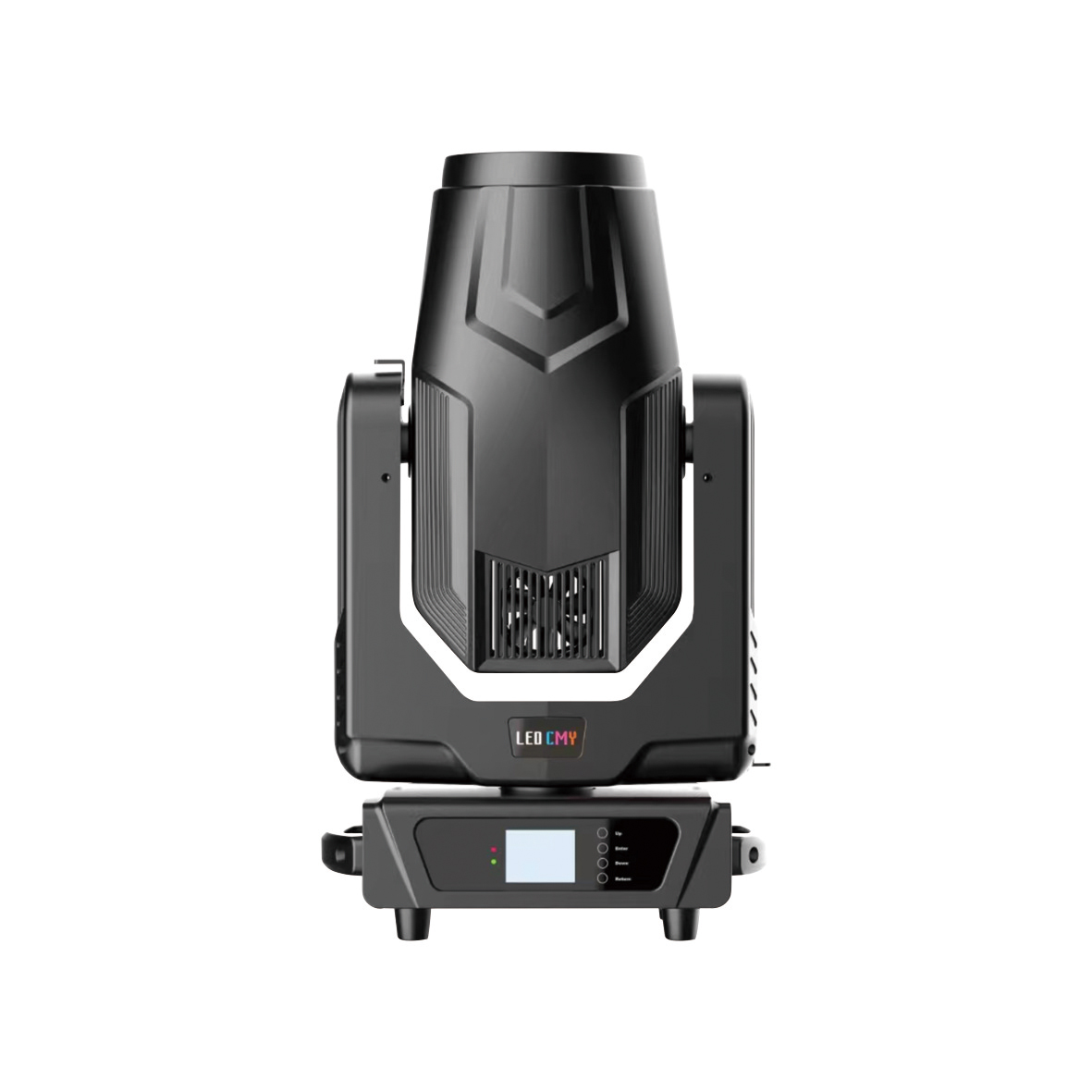

500W LED3in1模组摇头灯
XL-LED500S
输入电压：AC90V-270V/50-60HZ
色温：9000K 显色指数：75
光源规格： ECO350－80－R00－000
光源寿命：20000小时
流明照度：4米120000 lm
出光口径：138MM
额定功率：600W
通道模式：22通道
水平扫描：540度（16bit精度扫描）电子纠错
垂直扫描：270度（16bit精度扫描）电子纠错
调光系统：0-100%线性调节
调焦系统：线性调节4米至50米
雾化系统：1个独立的雾化效果，光斑柔和自然
缩放角度：光束为2.7～36° 染色4-36° 图案4-36°
高速频闪：0-30次/秒.可调速频闪效果.频闪宏功能
颜色：8种颜色+白光.色彩半色功能
颜色系统：独立的CMY+CTO混色系统。
固定图案：12个固定图案+白光
旋转图案：7个玻璃图案，每个玻璃图案可独立正反转
棱镜系统：标配单6排棱镜和8+8棱镜，每个棱镜可独立正反转
宏 功 能：控台复位功能,自走模式，主从模式
显示方式：液晶显示，按键+触摸双操作模式
控制信号：国际标准DMX512。带RDM功能，可在线软件升级，拨地址码
冷却方式：采用轴向风扇加强冷却
安全装置：带电子温控过热保护,过热系统故障时电子温控自动断电保护
外观材质：耐高温塑胶
工作环境：-20度，40度
防护等级：IP20
产品净重：22.5KG
产品毛重：25KG
产品尺寸：38*27*65CM (L*W*H)
纸包尺寸：54*45*61CM
Input voltage: AC90V-270V/50-60HZ
Color temperature: 9000K Color rendering index: 75
Light source specification: ECO350-80-R00-000
Light source lifespan: 20000 hours
Luminous illumination: 4 meters 120000 lm
Output aperture: 138MM
Rated power: 600W
Channel mode: 22 channels
Horizontal scanning: 540 degrees (16bit precision scanning) electronic error correction
Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction
Dimming system: 0-100% linear adjustment
Focusing system: Linear adjustment from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spot
Scaling angle: The beam is dyed at 2.7-36 °, with a pattern of 4-36 °
High speed strobe: 0-30 times/second. Adjustable strobe effect. Strobe macro function
Color: 8 colors+white light. Color half color function
Color system: Independent CMY+CTO color mixing system.
Fixed pattern: 12 fixed patterns+white light
Rotating pattern: 7 glass patterns, each with independent forward and reverse rotation
Prism system: standard with single 6-row prisms and 8+8 prisms, each prism can independently reverse and forward
Macro function: console reset function, self running mode, master-slave mode
Display mode: LCD display, button+touch dual operation mode
Control signal: International standard DMX512. With RDM function, can upgrade online software, dial address code
Cooling method: using axial fans to enhance cooling
Safety device: equipped with electronic temperature control overheat protection, and the electronic temperature control automatically cuts off power protection in case of overheating system failure
Appearance Material: High temperature resistant plastic
Working environment: -20 degrees, 40 degrees
Protection level: Ip20
Net weight of product: 22.5KG
Product gross weight: 25KG
Product size: 38 * 27 * 65CM (L * W * H)
Paper package size: 54 * 45 * 61CM
